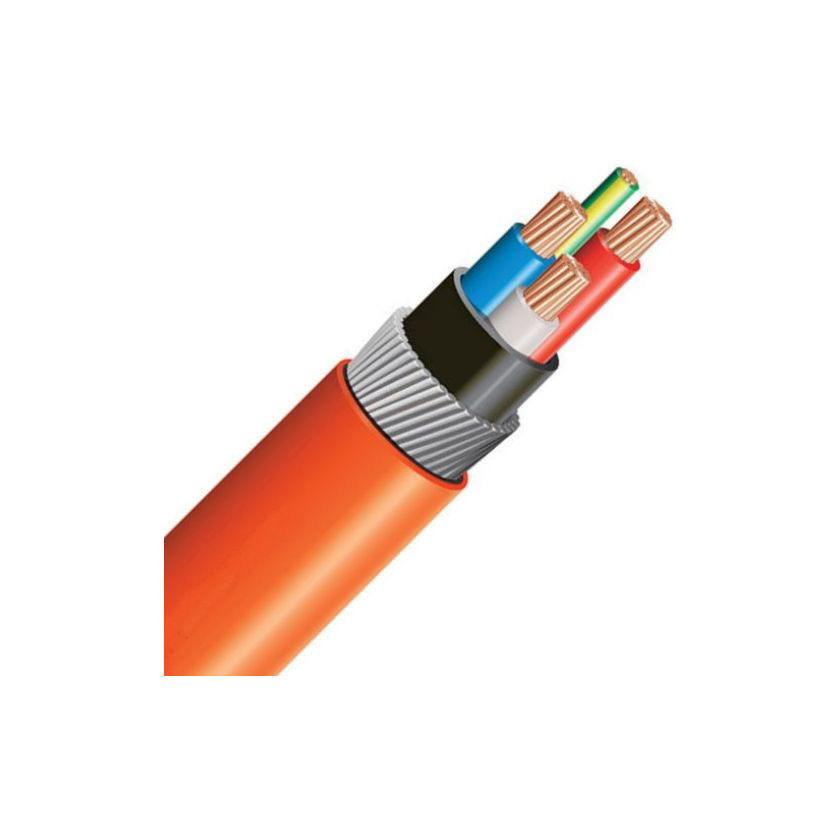

3 Cores +1 Earth Power Cable (PVC Insulated)
Characteristics
Rated Temperature |
70oC |
Rated Voltage |
600/1000V |
Reference Standard |
GB/T12706, IEC60502 |
Shaped and circular stranded copper conductors | |
Flame retardant insulated with PVC compound | |
PVC bedded | |
Flame retardant PVC sheathed overall | |
Applications
Used for building electrical systems, industrial power distribution, indoor and outdoor lighting fixtures, electrical control and signal transmission, safety electrical systems.
Advantages
Safety: The ground wire provides a reliable path for fault currents, effectively protecting personnel and equipment from the hazards of electric shock.
Cost Savings: Integrating three conductors (cores) and one ground wire into a single cable is more cost-effective than using multiple cables separately.
Simplified Installation: By reducing the number of cables to be installed and managed, the electrical wiring process is simplified, saving project time and costs.
Packing Materials
Wooden drum, steel-wooden drum, steel drum.
Specifications
| Cu core | Al core | Description |
| VV NH-VV |
VLV NH-VLV |
Cu (Al) core / PVC-insulated / PVC-sheathed power cable Cu (Al) core / PVC-insulated / PVC-sheathed fire resistant cable |
| VY NH-VY |
VLY NH-VLY |
Cu (Al) core / PVC-insulated / PE-sheathed power cable Cu (Al) core / PVC-insulated / PE-sheathed fire resistant cable |
| VV22 NH-VV22 |
VLV22 NH-VLV22 |
Cu (Al) core / PVC-insulated / steel-tape-armored / PVC-sheathed power cable Cu (Al) core / PVC-insulated / steel-tape-armored / PVC-sheathed fire resistant cable |
| VV23 NH-VV23 |
VLV23 NH-VLV23 |
Cu (Al) core / PVC-insulated / steel-tape-armored / PE-sheathed power cable Cu (Al) core / PVC-insulated / steel-tape -armored / PE-sheathed fire resistant cable |
| VV32 NH-VV32 |
VLV32 NH-VLV32 |
Cu (Al) core / PVC-insulated / fine-steel-wire-armored / PVC-sheathed power cable Cu (Al) core / PVC-insulated / fine-steel-wire-armored / PVC-sheathed fire resistant cable |
| VV33 NH-VV32 |
VLV33 NH-VLV32 |
Cu (Al) core / PVC-insulated / fine-steel-wire-armored / PE-sheathed power cable Cu (Al) core / PVC-insulated / fine-steel-wire-armored / PE-sheathed fire resistant cable |
| VV42 NH-VV42 |
VLV42 NH-VLV42 |
Cu (Al) core / PVC-insulated / thick-steel-wire-armored / PVC-sheathed power cable Cu (Al) core / PVC-insulated / thick-steel-wire-armored / PVC-sheathed fire resistant cable |
| VV43 NH-VV43 |
VLV43 NH-VLV43 |
Cu (Al) core / PVC-insulated / thick-steel-wire-armored / PE-sheathed power cable Cu (Al) core / PVC-insulated / thick-steel-wire-armored / PE-sheathed fire resistant cable |
