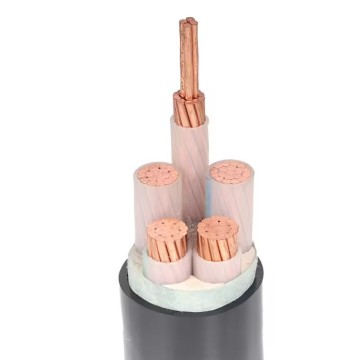

3 Cores+2 Earth Power Cable (XLPE Insulated)

The structure of 3 cores+2 earth is designed for application where the earth wires are required according to customer requirements, featuring three main conductors for carrying three-phase alternating current (AC) and two separate conductors for protective earth connections. These cables are often referred to 3 cores +2 cables XLPE insulated with voltage 0.6/1000v or IEC60502 3 cores +2 cables.

Characteristics

Rated Temperature	90℃
Rated Voltage	600/1000V
Reference Standard	IEC60502
Conductor	Shaped and circular stranded copper conductors
Insulated	Insulated with cross-link polyethylene compound
PVC bedded
Flame retardant PVC sheathed overall

Applications

For fixed installation of the transmission and distribution systems, tunnels and pipelines and other occasions.

For situation not suppose to bear the external mechanical force.

Specifications

Cross-sectional Area (mm²)	No.&diameter of wire (N/mm)	Average overall diameter (mm)	Reference weight (kg/km)
3x1.5+2x1.0	1/1.38, 1/1.13	13.6	248
3x2.5+2x1.5	1/1.76, 1/1.38	14.7	308
3x4.0+2x2.5	7/0.85, 7/0.67	16.8	460
3x6.0+2x4.0	7/1.04, 7/0.85	18.1	541
3x10+2x6.0	7/1.35, 7/1.04	20.3	753
3x16+2x6.0	7/1.70, 7/1.04	21.9	962
3x16+2x10	7/1.70, 7/1.35	23	1072
3x25+2x10	7/2.14, 7/1.35	25.4	1414
3x25+2x16	7/2.14, 7/1.70	26.5	1553
3x35+2x10	19/1.53, 7/1.35	27.5	1750
3x35+2x16	19/1.53, 7/1.70	28.8	1905
