Building Wire

TW/THW wire are a solid or stranded, soft annealed copper conductor insulated with Polyvinyl chloride (PVC).

TW wire stands for a thermoplastic, water-resistant wire.

THW wire is also thermoplastic, water-resistant wire, but is heat resistant, denoted by the H in the name.

THHN Thermoplastic High Heat-resistant Nylon-coated wire is a single conductor wire with PVC insulation and a nylon jacket.

THWN thermoplastic heat- and water-resistant wire is essentially the same as THHN and the two are often used interchangeably. THWN is also a single conductor wire with PVC insulation and a nylon jacket.

THWN-2 wire is basically a THWN wire with extra heat protection and it can be used in very high heat situations (up to 90°C or 194°F).

XHHW wire stands for "XLPE (cross-linked polyethylene) High Heat-resistant Water-resistant." XHHW cable is a designation for a specific insulation material, temperature rating, and condition of use (suitable for wet locations) for electrical wire and cable.

6241Y 6242Y 6243Y Cable PVC Insulated And PVC Sheathed Flat Twin And Earth Wire with bare circuit protective conductor CPC.

H05V-K 300/500V Single Core PVC Insulated Flexible Cable. H05V-K are most standard harmonized PVC European Flexible single conductor wires. Ideal for the inside wiring of appliances, apparatus, switchboards, distributor boards and telecommunication devices.

H05V-R Cable is harmonized PVC single core non-sheathed power cable with multi-wire stranded conductor for internal wiring.

H05V-U Cable is harmonized PVC European single-conductor hook-up wires with a solid bare copper core.

H07V-K 450/750V Cable is flexible harmonized single-conductor PVC insulated hook-up wire. H07V-K single-core flex cable is named according to harmonized standard. In British, the H07V-K cables refer to 2491X. H07V-K cable/wire features flex copper conductor class 5 and PVC insulation with voltage 450/750V.

H07V-R Cable is harmonized lead wires, which consist of single-stranded bare copper conductors, with PVC insulation.

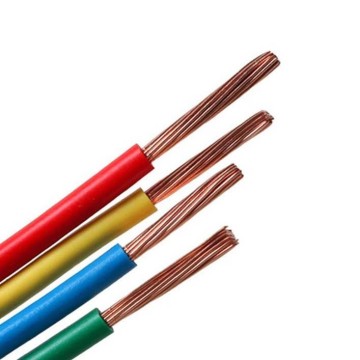

Single core 90℃ flexible conductor unsheathed cable for internal wiring.

Light PVC Insulated PVC Sheath BVV Building Wire for Fixed Wiring.

Light PVC Insulated PVC Sheath RVV Flexible Building Wire for Internal Wiring.

Light PVC Sheathed Flexible Cable for indoor electrical instruments power supply wire.

Single-core Non-sheath with rigid conductor cable used for general purposes.

Single core flexible conductor unsheathed cable for general purposes.
